Cut AHU fan power by 28% and eliminate cooling coil mold biofilms.

Guaranteed Eurovent Energy Class A low pressure drop (initial clean DP as low as 95 Pa) and ISO 16890 ePM1 85%+ filtration. Engineered specifically for Malaysia's demanding >85% relative humidity tropical climate to slash TNB utility bills.

Calculate AHU Energy Savings → 3-Stage Filtration Pipeline
AHU Supply Fan Power -28%

Reduction in electrical consumption via aerodynamic low-resistance media.

Coil Washing Interval 24 Mos

Extended from quarterly chemical washdowns to 2 full years without biofilm.

Submicron IAQ Rating ePM1 85%

Certified under ISO 16890 and DOSH Industry Code of Practice on IAQ 2010.

Annual TNB Bill Savings RM 140k+

Average verified yearly electrical cost savings per 30-AHU commercial tower.

Tropical Climate Physics • MS 1525 Standard

The high-humidity dilemma in Malaysian buildings.

In Peninsular Malaysia, ambient outdoor air routinely averages 28°C to 34°C with 80%–90% relative humidity. Standard imported fiberglass filters absorb ambient moisture, collapse structurally, and breed microbial biofilms across chiller cooling coils.

The Cost of Generic HVAC Filtration

Why Standard Building Filters Fail in Malaysia
  • Moisture Absorption & Pocket Pinching: Generic fiberglass and paper media sag under tropical humidity, collapsing airflow channels and spiking pressure drop above 250 Pa.
  • Cooling Coil Biofilm Infestation: Mold spores and fungal slimes bypass loose-fitting filters, colonizing wet evaporator fins and creating foul "dirty sock" odors for tenants.
  • Excessive TNB Tariff Penalties: High airflow resistance forces variable-frequency drive (VFD) supply fans to ramp up to 100%, causing massive peak-demand electrical surcharges.
  • Frequent Chemical Coil Washes: Facility teams are forced to perform messy chemical coil washdowns every 3 to 4 months, accelerating coil fin corrosion and leaking risks.

The Superado Engineering Standard

Engineered for Tropical Humidity & Lowest Lifetime Cost
  • Hydrophobic Synthetic Media: 100% moisture-resistant synthetic fibers engineered to maintain structural rigidity and low airflow resistance even at 99% RH conditions.
  • Aerodynamic 4V-Bank Compact Design: Provides up to 18 m² of effective filtration area per unit, delivering ultra-low initial clean resistance (initial DP 95 Pa vs 220 Pa).
  • Continuous Polyurethane Foamed Gasket: Machine-poured seamless PU seal guarantees 100% airtight fit against AHU holding frames, preventing unfiltered air bypass.
  • Coil Protection Extended to 24 Months: By capturing >85% of sub-micron fungi and spores, cooling coils stay pristine, slashing chemical maintenance shutdowns.
System Architecture

Recommended 3-stage filtration cascade.

Designed in accordance with Malaysian Standard MS 1525 (Energy Efficiency in Non-Residential Buildings) and ASHRAE Standard 62.1 for commercial air handling units.

Stage 01 • Fresh Air Intake

Coarse Pre-Filtration

SuperBoard™ G4 / SuperRoll™ Synthetic

Arrests coarse outdoor dust, insects, and vegetative debris before air enters cooling coils and secondary filters. Washable synthetic or high-capacity moisture-resistant beverage board frames.

Clean Resistance: 45 Pa (Initial DP)
Efficiency: ISO Coarse 75% • MERV 8
Stage 02 • Main Air Handler

Secondary Pocket Filtration

SuperPocket™ F7 / F8 Synthetic Bags

Captures atmospheric sub-micron particulate matter (PM2.5). Self-supporting aerodynamic pockets prevent balloon pinching and maintain full airflow distribution across all pockets.

Clean Resistance: 75 Pa (Initial DP)
Efficiency: ePM1 70% • MERV 13 • Eurovent A
Stage 03 • Critical Supply

Compact 4V-Bank Final Stage

SuperVee™ F9 4V-Bank / HyperPure™ H13

Massive 18 m² media surface area in a compact 292mm frame. Guarantees sterile coils, prevents black dust staining on tenant diffusers, and eliminates fungal spores from indoor air.

Clean Resistance: 95 Pa (Initial DP)
Efficiency: ePM1 85%–90% • MERV 15 • Eurovent A+
Engineering Precision • ASHRAE Standard 52.2

Inside a modern commercial AHU filtration chamber.

See how multi-stage filtration protects the central chiller cooling coil and supply fan plenum from particulate fouling and fungal contamination.

Central Station Air Handling Unit (AHU) Internal Architecture

Aerodynamic filter staging and cooling coil protection schematic for commercial buildings.

Engineering Specification
DOUBLE-SKIN AHU CASING (THERMAL BREAK • PU INSULATION) AIRFLOW → STAGE 1: G4 Pre-Filter Pleat (45 Pa) STAGE 2: F7/F8 Pocket Bags (75 Pa) CHILLER COIL ✓ 100% Slime-Free (24 Mos) STAGE 3: 4V-BANK F9 / H13 Mini-Pleat (95 Pa) SUPPLY BLOWER -28% Fan Electricity DISCHARGE → TENANT IAQ ePM1 85%
Building mechanical engineer auditing AHU filter differential pressure

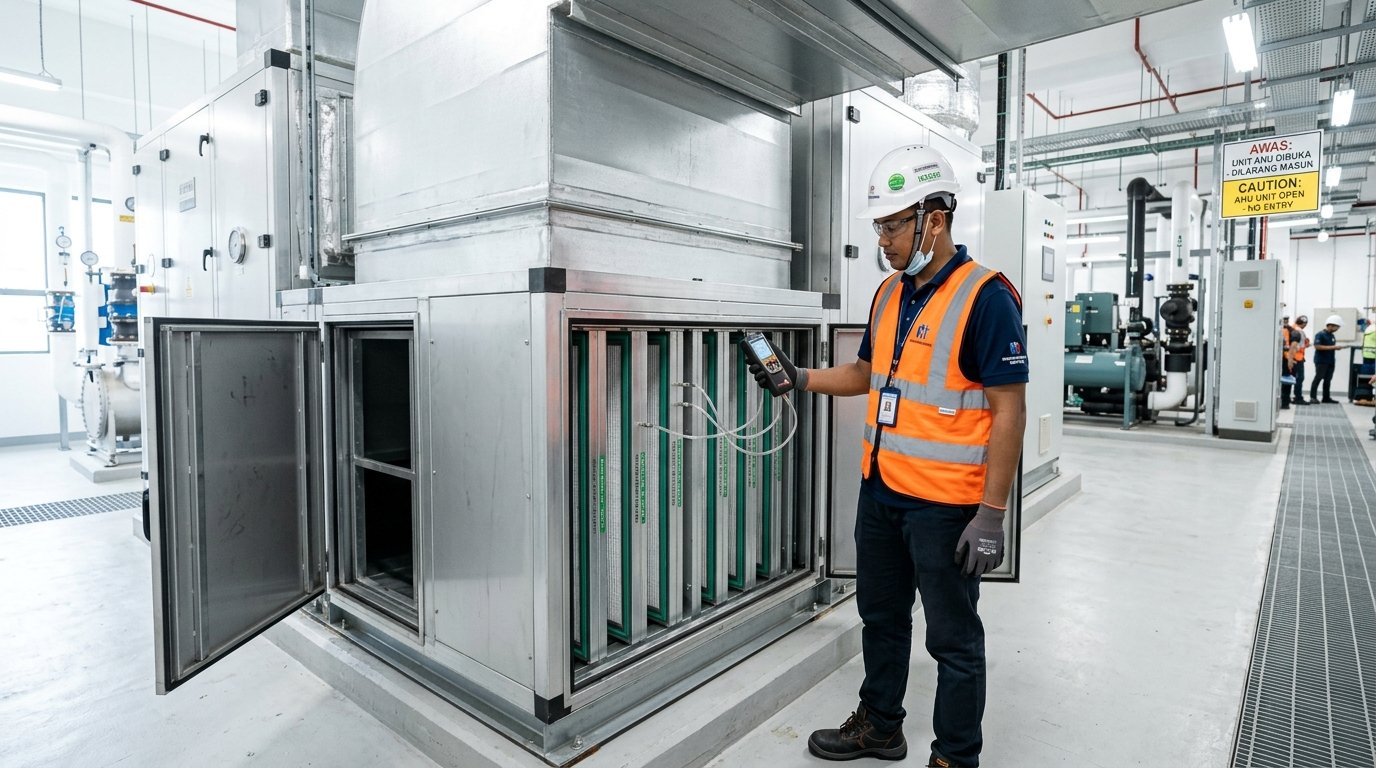

Plant Room Pressure Audit: Verifying clean pressure drop (95 Pa) on a commercial tower 4V-Bank filter rack using a digital differential manometer.
Commercial Central AHU Mechanical Plant Room in Malaysia

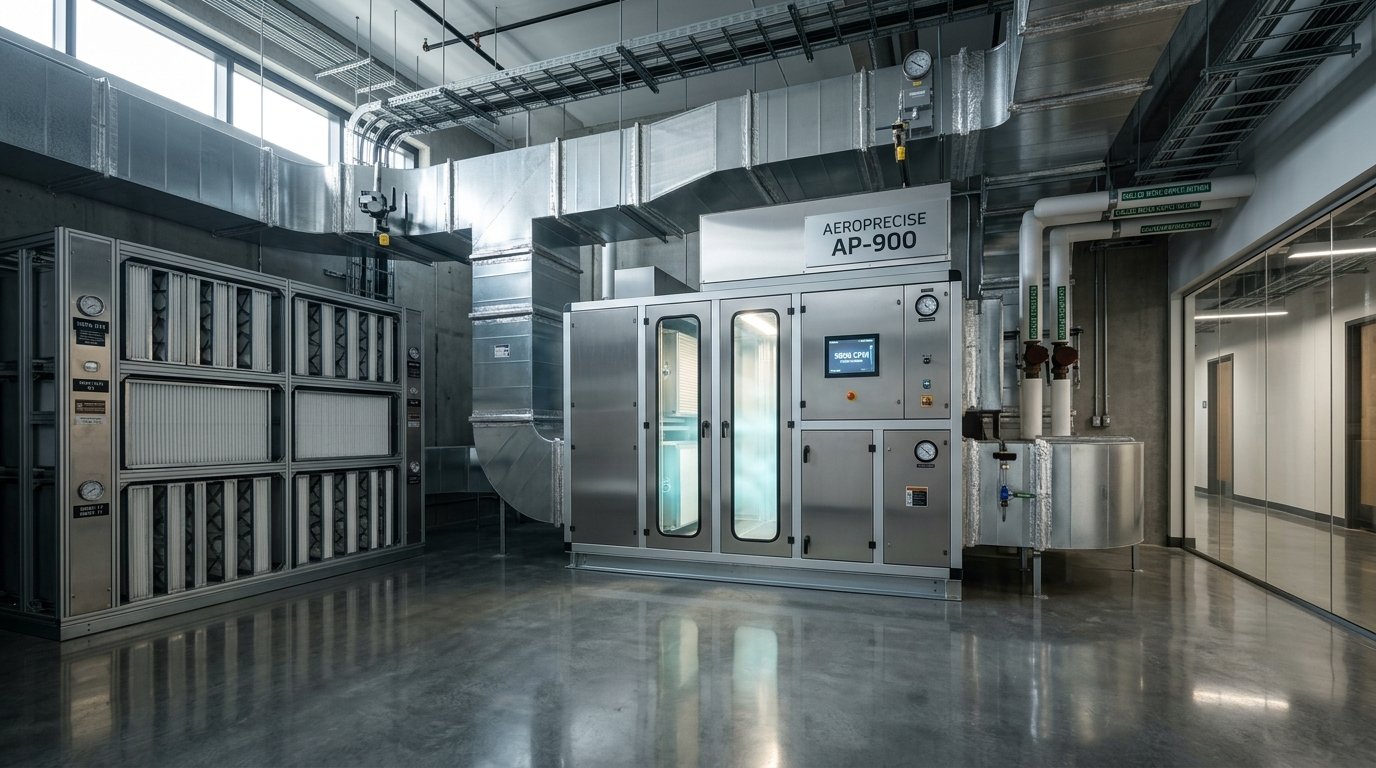

Central Station AHU Plant Room: Dual-intake air handling unit serving 40,000 sq.ft of premium corporate tenant space in Kuala Lumpur.
Lifecycle Economics & Benchmarking

Generic building filters vs. Superado high-efficiency.

Over 70% of an air filter's total lifecycle cost is the electrical power required to push air through it. See how Superado delivers superior IAQ with drastically lower operating expenses.

Performance Parameter Typical Generic Filters (Fiberglass/Paper) Superado High-Efficiency (Synthetic/4V-Bank) Engineering & Business Benefit
Initial Clean Resistance (ΔP)
At nominal 2.54 m/s (500 FPM) face velocity 		200 – 240 Pa (High Resistance) 95 – 110 Pa 55% Lower Fan Resistance
Eurovent Energy Efficiency Class
Eurovent 4/21 Annual Energy Consumption 		Class D / E (> 2,100 kWh/yr) Class A+ (< 850 kWh/yr) 60% Electrical Energy Saved
Moisture Tolerance in Tropical Climate
Performance under >85% RH conditions 		Sags, pocket pinch, structural collapse 100% Moisture-proof synthetic fibers Zero Structural Sagging
Chiller Cooling Coil Wash Frequency
Chemical sanitization & biofilm cleaning 		Every 3 – 4 Months (Costly downtime) Extended to 24 Months 80% Reduction in Maintenance
IAQ Submicron Capture Rating
ISO 16890 / DOSH ICOP IAQ 2010 Compliance 		ePM1 < 50% (Passes fine mold spores) ePM1 85% – 90% Certified Clean IAQ / GBI Green Certified
Malaysian Building Track Record

Proven outcomes across Klang Valley, Cyberjaya & Johor.

Real commercial facilities where building management reduced operating expenditure, resolved tenant odor complaints, and achieved national green certifications.

Kuala Lumpur • 45-Storey Prime Tower & Mall

Central AHU Static Resistance & Energy Reduction

The Problem: 32 central AHUs serving 1.2M sq.ft prime commercial space suffered from high 220 Pa pressure drop on generic bag filters and severe coil slime requiring quarterly washdowns.
Superado Solution: Turnkey upgrade to SuperBoard™ G4 pre-filters paired with SuperVee™ F9 4V-Bank compact mini-pleat elements with continuous foamed PU gaskets.
Verified Result: Clean DP reduced from 220 Pa to 95 Pa (-57%); 28% electrical power reduction on AHU supply fans; coil washing cycle extended to 24 months. Saved RM 142,000/yr in TNB bills.
Cyberjaya • Tier-IV Hyperscale Data Center

PUE Optimization & Zero-Fiber Server Air Supply

The Problem: Server hall air handlers required strict ePM1 80% filtration without fiber shedding, while maintaining minimal static fan load to satisfy strict PUE (< 1.35) contractual benchmarks.
Superado Solution: Custom-engineered SuperVee™ F8 4V-Bank filters featuring non-shedding synthetic media and injection-molded polystyrene frames.
Verified Result: Overall facility PUE reduced by 0.04; saved over 120,000 kWh annually per server hall with zero particle contamination on equipment heat sinks.
Subang Jaya • Private Specialist Hospital

Operating Theatre Terminal HEPA Lifespan Extension

The Problem: Terminal ceiling HEPA filters in 8 surgical suites were blinding prematurely within 6 months due to high humidity bypass in the primary pre-filter bank, triggering costly room closures.
Superado Solution: Installed SuperPocket™ F7 moisture-resistant pocket filters as pre-filters and SuperVee™ F9 intermediate barriers upstream of terminal H14 HEPA diffusers.
Verified Result: Terminal HEPA service life quadrupled from 6 months to 26 months; 100% compliant with Ministry of Health (MOH) cleanroom particle count standards.
Interactive Engineering Tool

Calculate your commercial AHU energy savings.

Input your building’s air handler specifications to instantly see estimated annual electrical kWh savings and TNB cost reductions when switching to Superado low-resistance filters.

AHU Operating Parameters

Adjust the sliders or values to reflect your commercial property:

Total Number of Central AHUs: 20 Units
Average Airflow per AHU (CFM): 10,000 CFM
Operating Hours per Day: 14 Hours / Day
TNB Commercial Tariff Rate (RM / kWh): RM 0.45
Projected Annual TNB Bill Savings
RM 87,480
Direct electrical savings based on 115 Pa average ΔP reduction.
194,400 kWh
Annual Energy Saved
112.7 Tons
CO₂ Emissions Avoided
