Eliminate paint craters, fish-eyes & cut panel rework below 0.5%.

100% certified silicone-free filtration with precision 0.28 m/s laminar downward air velocity. Engineered to arrest sub-10μm airborne particulates and trap 99.4% of overspray paint mist in Malaysian automotive assembly plants and refinishing tunnels.

Calculate Panel Rework Savings → 3-Stage Airflow Architecture
Panel Defect Rate < 0.5%

Reduced from industry average 8.4% to 0.4% clearcoat rework.

Chemical Contamination 100%

Silicone-Free certified. Zero cratering or fish-eye risk guaranteed.

Downward Face Velocity 0.28 m/s

Stable laminar air curtain without eddy turbulence or dry fog.

Annual Labor Savings RM 180k+

Verified yearly sanding & respraying cost reduction per paint line.

Surface Chemistry & Aerodynamics

Why automotive paint finishes fail in the booth.

In automotive clearcoat finishing, surface paint quality is measured in microns. Airborne particles as tiny as 10μm, migratory silicone oil, or turbulent airflow cause defects that require expensive manual sanding and complete panel respraying.

The Cost of Generic Spraybooth Media

Why Low-Cost Filter Mats Destroy Paint Line Margins
  • Fish-Eyes & Surface Cratering: Low-cost ceiling filters containing silicone-based binders release chemical oils into the airflow, causing widespread clearcoat fish-eyes.
  • Fiber Shedding & Dust Inclusions: Weak unreinforced media sheds loose synthetic fibers and allows 10μm–20μm airborne nibs to settle directly onto wet paint panels.
  • Turbulent Eddy Airflow: Non-uniform media density creates localized dead air pockets and draft vortexes that curl paint overspray back onto adjacent car body panels.
  • Exhaust Blower Overspray Clogging: Inferior floor media allows wet paint mist to coat exhaust fan impellers, triggering vibration, motor burnout, and fire hazards.

The Superado HyperCoat™ Standard

Engineered for Flawless OEM First-Run Acceptance
  • 100% Certified Silicone-Free: Formulated with medical-grade, non-migratory synthetic polymers. Zero fish-eye craters guaranteed under lab gas chromatography tests.
  • HyperCoat™ HC600 Full-Depth Tackifier: European EU5 / F5 diffusion blankets with adhesive active throughout the full depth, preventing dust migration even during booth start-up pulses.
  • Reinforced Polyester Scrim Backing: Air exit face reinforced with high-strength woven mesh prevents fiber break-off and ensures uniform 0.28 m/s laminar velocity.
  • Dual Inertial Overspray Trap: HCP10 accordion cardboard holding up to 18 kg/m² wet paint sludge paired with HCG440 paint-stop fiberglass arresting 99.4% overspray mist.
Airflow Engineering

The 3-stage down-draft booth filtration pipeline.

Designed to maintain balanced booth pressurization (+15 to +20 Pa) and continuous laminar airflow distribution from ceiling diffusion to exhaust pit extraction.

Stage 01 • Air Makeup Unit (AMU)

Intake Pre-Filter Rolls

SuperRoll™ G4 Washable Synthetic

Arrests outdoor road dust, soot, and insects before burner combustion chambers and air supply blowers. Washable, high dust-holding capacity, and moisture-resistant for tropical climates.

Clean Resistance: 35 Pa (Initial DP)
Arrestance: ISO Coarse 80% • EN 779 G4
Stage 02 • Ceiling Diffusion Plenum

Tackified Ceiling Blankets

HyperCoat™ HC600 Ceiling Rolls

EU5 / F5 fine filtration blanket with full adhesive impregnation throughout the media depth and exit mesh scrim. Distributes air evenly into a smooth 0.28 m/s downward laminar air curtain.

Clean Resistance: 45 Pa (Initial DP)
Arrestance: >99.8% on particles >5μm • 100% Silicone-Free
Stage 03 • Floor Exhaust Pit

Dual Inertial Paint Trap

HyperCoat™ HCP10 & HCG440 Paint-Stop

Accordion inertia cardboard forces airflow through tortuous V-channels to deposit 98% of liquid paint overspray, backed by progressive green/white fiberglass to shield exhaust fans.

Holding Capacity: Up to 18 kg/m² wet paint
Arrestance: 99.4% Overspray Mist Separation
Laminar Airflow Dynamics • ISO 14644

Down-draft spraybooth aerodynamic architecture.

Proper down-draft airflow pulls paint overspray straight down into the floor pit in a single pass, preventing rebound mist from touching adjacent painted bodywork.

Pressurized Automotive Down-Draft Spraybooth Cross-Section

Full-ceiling diffusion plenum with dual floor exhaust pit extraction engineering.

Engineering Specification
PRESSURIZED AUTOMOTIVE DOWN-DRAFT CABIN (+15 PA) CEILING PRESSURE PLENUM (HEATED FILTERED AIR SUPPLY) HYPERCOAT™ HC600 TACKIFIED CEILING MEDIA (0.28 M/S) BASE / CLEARCOAT GALVANIZED FLOOR GRATE STAGE 3A: HCP10 ACCORDION INERTIA CARDBOARD STAGE 3B: HCG440 PAINT-STOP FIBERGLASS (99.4%) TO EXHAUST BLOWER
Automotive paintshop quality engineer conducting spraybooth airflow velocity audit

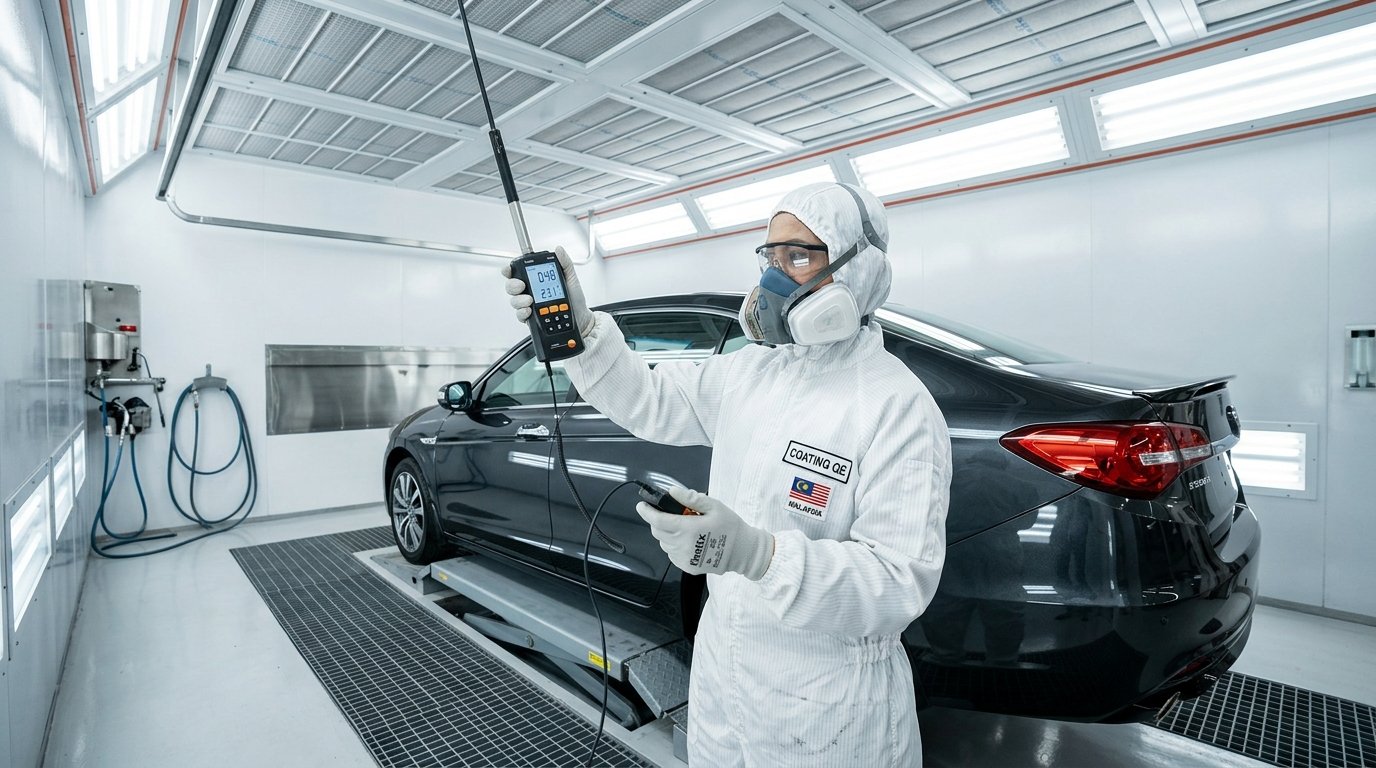

Ceiling Velocity Audit: Coating quality engineer in clean suit measuring downward face velocity (0.28 m/s) with digital hot-wire probe.
Automotive assembly line spraybooth finishing tunnel in Shah Alam
Industrial Finishing Tunnel: Conveyorized pressurized automotive paint application line operating in Shah Alam, Selangor.
Paint Finishing Benchmarking

Generic filter mats vs. Superado HyperCoat™.

A single painted bumper panel rejected for cratering costs over RM 150 in rework labor, paint solvent, and bake oven re-heating. Compare how Superado eliminates defect overhead.

Coating Quality Parameter Generic / Low-Cost Ceiling Mats Superado HyperCoat™ HC600 Paintshop Production Benefit
Silicone-Free Certification
Laboratory Gas Chromatography (GC-MS) 		Uncertified (Silicone binders present) 100% Certified Silicone-Free Zero Chemical Fish-Eyes
Tackifier Adhesive Distribution
Depth impregnation of active adhesive 		Dry or Surface-only sprayed Full-Depth Impregnation (100% Core) Traps 99.8% Sub-10μm Dust
Airflow Downward Laminar Velocity
Target: 0.25 – 0.30 m/s face velocity 		Erratic (0.15 – 0.42 m/s dead spots) Uniform 0.28 m/s (±0.02 m/s) Zero Rebound Turbulence
Floor Overspray Holding Capacity
Paint mist arrested per square meter 		2 – 4 kg/m² (Blinds rapidly) Up to 18 kg/m² (Dual HCP10 + HCG440) 4x Longer Exhaust Lifespan
OEM First-Run Defect Rework Rate
Panels requiring manual buffing/respray 		6% – 12% Defect Rework < 0.5% (Verified 0.4%) Slashes Rework Labor by 95%
Malaysian Automotive Track Record

Proven outcomes across Shah Alam, Rawang & Subang.

Real manufacturing operations where paintshop teams resolved chronic clearcoat defects, eliminated solvent rework, and protected exhaust systems.

Shah Alam, Selangor • Tier-1 Automotive Line

Bumper & Exterior Panel First-Run Acceptance

The Problem: Conveyorized spray tunnel suffered recurrent clearcoat paint crater defects and fish-eye blemishes, triggering an 8.4% panel rework rejection rate and excessive solvent consumption.
Superado Solution: Full ceiling retrofitting with HyperCoat™ HC600 full-depth tackified blankets, paired with HCP10 accordion cardboard and HCG440 paint-stop fiberglass beneath floor grids.
Verified Result: Panel defect rate plummeted from 8.4% to 0.4%; laminar airflow stabilized at 0.28 m/s with zero air eddy turbulence. Saved RM 180,000/yr in rework labor.
Rawang, Selangor • Commercial Bus Coachworks

Heavy Paint Overspray & Blower Clogging Elimination

The Problem: High-volume polyurethane topcoat overspray blinded exhaust blowers within 3 weeks, causing motor overheating, vibration, and paint mist complaints from neighboring factory lots.
Superado Solution: Installed dual-stage floor exhaust pits featuring HCP10 high-capacity inertial cardboard baffles followed by activated carbon gas-phase vapor panels in the exhaust stack.
Verified Result: Exhaust fan maintenance cycle extended from 3 weeks to 6 months; 100% eliminated external paint plume complaints with zero motor burnout incidents.
Subang, Selangor • Aerospace Finishing

Aerospace Composite AS9100 Zero-Defect Finish

The Problem: Stringent aerospace quality standards (AS9100) required zero surface nib inclusions on carbon-fiber composite aircraft fairings. High humidity caused standard media to shed fibers.
Superado Solution: HyperCoat™ HC600 ceiling media with high-density polyester scrim backing, pre-conditioned for high-temperature bake cycles up to 100°C without adhesive degradation.
Verified Result: 100% first-pass inspection across 500+ aerospace composite panels. Zero sanding rework required, satisfying international aircraft OEM audits.
Interactive Paintshop ROI Tool

Calculate your paint defect rework savings.

Input your daily production volume and current panel rework defect rate to see the projected annual savings when upgrading to Superado silicone-free filtration.

Paintshop Operating Parameters

Adjust the sliders to model your automotive painting operation:

Panels / Bodies Sprayed per Day: 40 Panels
Current Paint Defect / Rework Rate (%): 6.0% Defect
Average Cost per Panel Rework (Labor & Paint): RM 150
Annual Production Working Days: 300 Days
Projected Annual Net Savings
RM 100,800
Based on slashing defect rework rate from 6.0% down to 0.4%.
672 Panels
Defective Panels Avoided
1,008 Hours
Sanding & Buffing Labor Saved
